Descriere

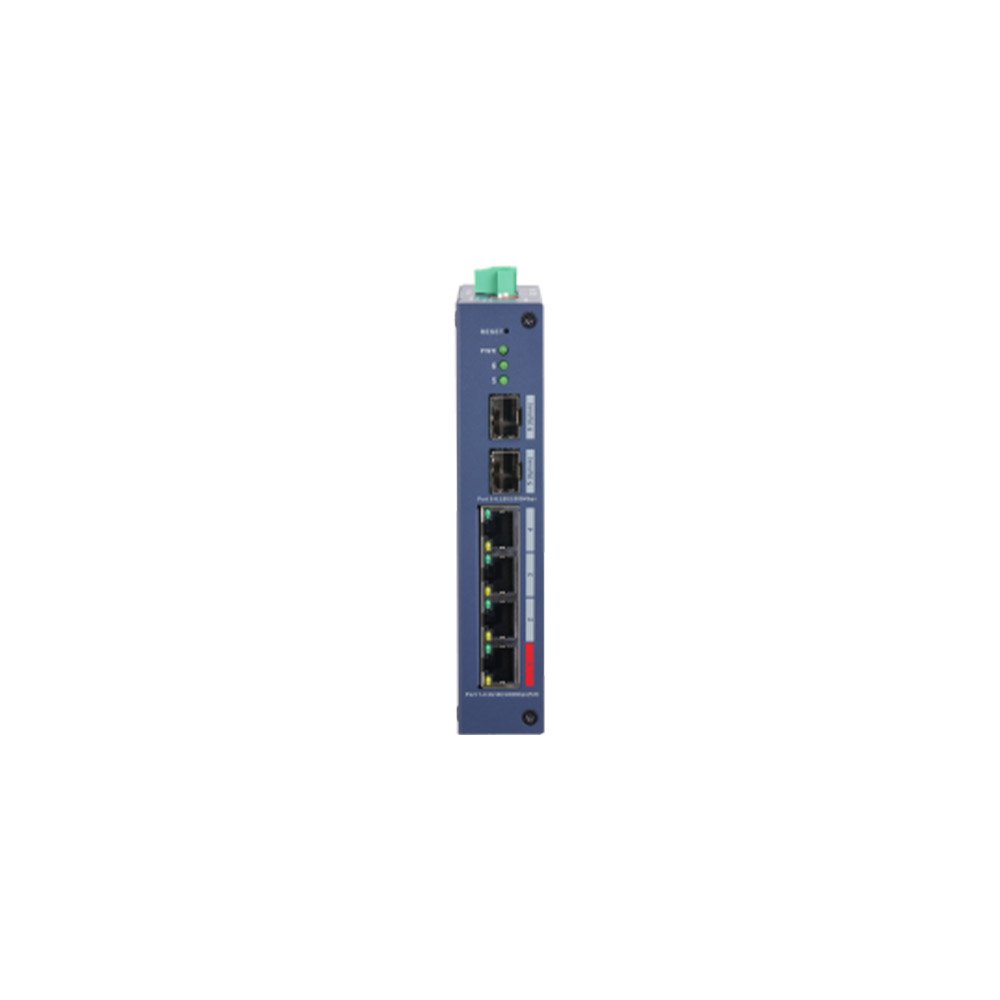

| Tip produs: | Switch industrial gestionabil Layer 2 |
| Aplicatie: | Retele IP pentru supraveghere, fabrici, infrastructura de date |
| Numar porturi: | 4 x RJ45 10/100/1000 Mbps (PoE), 2 x SFP 100/1000 Mbps (uplink) |
| PoE: | Port 1: 90W (IEEE802.3bt); Porturi 2–4: 30W; Total ≤90W |
| Capacitate comutare: | 12 Gbps |
| Rata redirectionare: | 8.928 Mpps |
| Buffer pachete: | 8.4 Mbit |
| Tabel MAC: | 8K adrese |
| Jumbo frame: | 12288 Byte |
| Functii PoE: | PoE Watchdog, PoE Long Distance (250m), alimentare inteligenta, protectie suprasarcina |
| Management: | Web GUI, aplicatie DoLynk Care, topologie vizuala, loguri, alarme |
| Protectii electrice: | ESD: 8 kV aer, 6 kV contact; Supratensiune: 4 kV (comun), 2 kV (diferential) |
| Temperatura functionare: | -30°C pana la +65°C |
| Umiditate functionare: | 10%–90% fara condens |
| Montaj: | DIN rail sau desktop |
| Material carcasa: | Metal |
| Dimensiuni: | 159.8 x 117.4 x 30 mm |
| Greutate neta: | 0.33 kg |
| Alimentare: | 48–57 VDC, 2–1.69A (terminal block/DC) |
| Consum energie: | 2 W (idle), 95.6 W (full load) |
| Certificari: | CE |
